You might not realize that most hydraulic presses rely on a single ram, missing out on the efficiency gains of a full cylinder suite. Adding a high‑capacity main ram, a double‑acting tie‑rod, a small‑stroke auxiliary, a retraction unit, a pressure‑balancing cylinder, a cooling‑oil circulator, and a safety‑release with pressure‑maintaining device transforms stability, speed, and safety. These seven components work together to keep force consistent, temperature in check, and operators protected—essential for truly peak performance.
| NEWTRY 20‑Ton Hydraulic Ram Jack – 8‑Inch Stroke Portable Lifting Cylinder |  | Heavy‑Duty Performer | Load Capacity (Ton): 20 ton | Stroke Length (Inches): 8 in (dual 4 in shafts) | Cylinder Type: Double‑acting (two shafts) | VIEW LATEST PRICE | Read Our Analysis |
| VEVOR 30T H-Frame Hydraulic Shop Press |  | High‑Capacity Pro | Load Capacity (Ton): 30 ton | Stroke Length (Inches): 4.9 in | Cylinder Type: Single‑acting hydraulic | VIEW LATEST PRICE | Read Our Analysis |
| MechMaxx 50 Ton H-Frame Shop Press (HSP50) |  | Versatile Powerhouse | Load Capacity (Ton): 50 ton | Stroke Length (Inches): 4.8 in (adjustable) | Cylinder Type: Single‑acting pneumatic/hydraulic | VIEW LATEST PRICE | Read Our Analysis |
| AMZCNC 20T Hydraulic Cylinder Jack (2″) |  | Compact Strength | Load Capacity (Ton): 20 ton | Stroke Length (Inches): 2 in (150 mm) | Cylinder Type: Single‑acting hydraulic | VIEW LATEST PRICE | Read Our Analysis |
| Mophorn 30T Hydraulic Cylinder Jack (30T 2Inch) |  | Precision Lifter | Load Capacity (Ton): 30 ton | Stroke Length (Inches): 2 in (50 mm) | Cylinder Type: Single‑acting hydraulic | VIEW LATEST PRICE | Read Our Analysis |
| 2×6 Hydraulic Cylinder Double Acting Tie Rod 2500 PSI |  | Industrial Workhorse | Load Capacity (Ton): 7.85 k lb (≈ 3.9 ton) | Stroke Length (Inches): 6 in | Cylinder Type: Double‑acting tie‑rod | VIEW LATEST PRICE | Read Our Analysis |
| NEWTRY 30‑Ton Hydraulic Hollow Jack with 2″ Stroke |  | Dual‑Action Specialist | Load Capacity (Ton): 30 ton | Stroke Length (Inches): 2 in (50 mm) | Cylinder Type: Single‑acting hydraulic (hollow) | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
NEWTRY 20‑Ton Hydraulic Ram Jack – 8‑Inch Stroke Portable Lifting Cylinder
If you need a compact, high‑capacity lift for heavy‑duty maintenance—whether you’re servicing a petro‑plant press, a steel‑mill roll, or a bridge‑construction rig—the NEWTRY 20‑Ton Hydraulic Ram Jack’s 8‑inch stroke and 20‑ton rating make it a perfect fit. You’ll appreciate its 3.34‑inch outer diameter, 2.6‑inch bore, and 13.2‑lb weight, which keep it portable yet sturdy. The multi‑section stroke prevents binding, while the safety pressure‑maintaining device protects you during operation. Its lacquered, rust‑resistant alloy‑steel body endures harsh environments, and the 3/8‑inch male connector works with CP‑700 hand or electric pumps. Manual retraction follows pressure release, and a 30‑day Amazon guarantee backs the purchase.
- Load Capacity (Ton):20 ton
- Stroke Length (Inches):8 in (dual 4 in shafts)
- Cylinder Type:Double‑acting (two shafts)
- Connector Size:3/8 in male
- Weight (lb):13.2 lb
- Material/Finish:Alloy‑steel, lacquered, rust‑resistant
- Additional Feature:Multi‑section stroke design
- Additional Feature:Safety pressure‑maintaining device
- Additional Feature:Lacquered rust‑resistant finish
VEVOR 30T H-Frame Hydraulic Shop Press
Looking for a shop press that can tackle heavy‑duty bending, straightening, and stamping without wobble? The VEVOR 30‑ton H‑Frame hydraulic shop press delivers 30 tons of force, perfect for automotive bushings, ball joints, and U‑joints. Its thick steel frame and triangular brace keep the unit rock‑solid, while the alloy‑steel plate minimizes slip. Adjust the worktable height from 2.6 to 36.9 in with eight quick‑pin settings, and enjoy a 4.9 in stroke—just don’t exceed it or you’ll damage the seals. The pneumatic assist pump works with any air compressor, and the included pressure gauge lets you monitor load precisely. At 250 lb, it’s sturdy yet manageable, and the 30‑day return guarantee backs your purchase.
- Load Capacity (Ton):30 ton
- Stroke Length (Inches):4.9 in
- Cylinder Type:Single‑acting hydraulic
- Connector Size:3/8 in (compatible pump)
- Weight (lb):249.7 lb
- Material/Finish:Thickened steel frame, alloy‑steel plate
- Additional Feature:Triangular base reinforcement
- Additional Feature:8‑position worktable height
- Additional Feature:Heavy‑duty alloy‑steel press plate

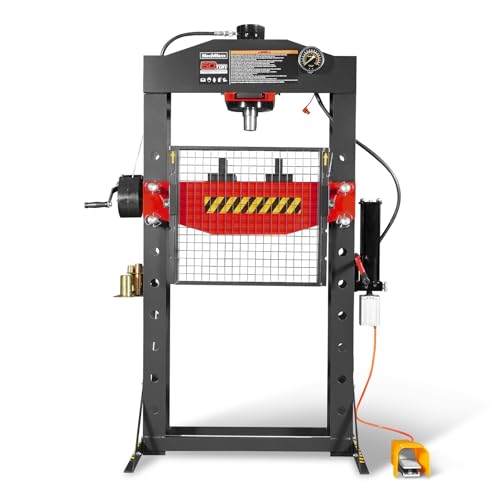

MechMaxx 50 Ton H-Frame Shop Press (HSP50)
The MechMaxx 50 Ton H‑Frame Shop Press (HSP50) is the ideal choice for small‑shop owners and hobbyist fabricators who need a compact yet powerful machine that can handle off‑center jobs without sacrificing rigidity. Its fully welded steel H‑frame delivers maximum strength and long‑term durability under high pressure. You’ll appreciate the movable ram head, which shifts 4.8 in left or right, and the 9‑position adjustable bed with 5.1 in hole spacing for precise work positioning. Foot‑pedal pneumatic control lets you adjust pressure hands‑free, while the protective grid guard shields you from debris. The package includes an 8‑piece press pin kit and two V‑blocks for versatile setups.
- Load Capacity (Ton):50 ton
- Stroke Length (Inches):4.8 in (adjustable)
- Cylinder Type:Single‑acting pneumatic/hydraulic
- Connector Size:Not specified (standard hydraulic)
- Weight (lb):90 lb
- Material/Finish:Welded steel, black finish
- Additional Feature:Movable ram head left/right
- Additional Feature:Foot‑pedal pneumatic control
- Additional Feature:Protective grid safety guard
AMZCNC 20T Hydraulic Cylinder Jack (2″)
Need a compact, high‑force lift for tight‑space jobs? The AMZCNC 20T Hydraulic Cylinder Jack delivers 20 US tons in a 2‑inch (50 mm) footprint, perfect for narrow‑space positions. Its hollow single‑acting ram reaches 150 mm, letting you lift heavy components without sacrificing clearance. Built from high‑carbon steel with black‑oxide plating, the ram resists wear, while the heat‑treated steel shell handles 10 000 psi pressure. The 3/8 NPT CR‑400 quick coupler and dust cap simplify setup. At 16 lb, it’s lightweight yet sturdy, fitting automotive, bridge, and fabrication tasks. You’ll appreciate its 4.4‑star rating and versatile vehicle compatibility.
- Load Capacity (Ton):20 ton
- Stroke Length (Inches):2 in (150 mm)
- Cylinder Type:Single‑acting hydraulic
- Connector Size:3/8 NPT CR‑400
- Weight (lb):16 lb
- Material/Finish:High‑carbon steel, black‑oxide plating
- Additional Feature:Hollow single‑acting ram
- Additional Feature:Quick‑connect 3/8 NPT coupler
- Additional Feature:High‑carbon steel black‑oxide plating
Mophorn 30T Hydraulic Cylinder Jack (30T 2Inch)
Who needs a compact, high‑capacity lift for tight‑space jobs? You’ll love the Mophorn 30T Hydraulic Cylinder Jack. Its 50 mm (2 in) stroke and 30‑ton (66 000 lb) capacity let you raise massive loads while fitting into a 9 × 8.7 × 7.5 in footprint. The hollow, heavy‑duty metal body with spray‑paint finish resists corrosion, and the 12 mm minimum height slides under low‑clearance equipment. Quick‑connect head and dust cover keep the seal leak‑free, and the portable handle adds flexibility. Riggers, welders, automotive shops, and bridge crews all benefit from its rugged, narrow‑space design.
- Load Capacity (Ton):30 ton
- Stroke Length (Inches):2 in (50 mm)
- Cylinder Type:Single‑acting hydraulic
- Connector Size:Quick‑connect (3/8 in)
- Weight (lb):24 lb
- Material/Finish:Heavy‑duty metal, painted spray coat
- Additional Feature:Quick‑connect head with dust cover
- Additional Feature:Portable handle for flexibility
- Additional Feature:Hollow design for compactness
2×6 Hydraulic Cylinder Double Acting Tie Rod 2500 PSI
If you demand a hydraulic press that can handle heavy‑duty cycles without compromising speed, the 2×6 double‑acting tie‑rod cylinder rated at 2500 psi is the essential component that delivers both power and precision. Its AH2006‑TR2 model features a 2.38‑in bore, 6‑in stroke, and a 1.125‑in rod, giving you a compact 16.25‑in retracted and 22.25‑in extended length. The 3/8‑NPT ports handle 2500 psi, while the column can lift up to 7,850 lb. Built with sturdy barrel, end caps, piston, and tie rods, it fits industrial presses, machine tools, agricultural gear, and construction equipment. You’ll benefit from a two‑year warranty and reliable performance.
- Load Capacity (Ton):7.85 k lb (≈ 3.9 ton)
- Stroke Length (Inches):6 in
- Cylinder Type:Double‑acting tie‑rod
- Connector Size:3/8 NPT female
- Weight (lb):27 lb (approx.)
- Material/Finish:Steel barrel, tie‑rod construction
- Additional Feature:Double‑acting tie‑rod mechanism
- Additional Feature:6‑inch stroke length
- Additional Feature:2‑year manufacturer warranty
NEWTRY 30‑Ton Hydraulic Hollow Jack with 2″ Stroke
The NEWTRY 30‑Ton Hydraulic Hollow Jack with a 2‑inch stroke is the go‑to cylinder for manufacturers who demand high‑force lifting without sacrificing space or efficiency, because its thickened inner wall and dual‑shaft design dramatically cut oil leakage while delivering smooth, stable pressure. You’ll appreciate its compact 6.7‑inch height, 4.4‑inch outer diameter, and 27‑lb weight, which fit tight bays yet handle 30 tons. The dual shafts separate push and lift actions, minimizing effort and improving pressure retention. Automatic retraction after pressure release speeds cycles, while the lacquer coating resists rust. Versatile angle adjustment lets you lift horizontally or vertically, meeting diverse industrial tasks with thrust and tension capabilities.
- Load Capacity (Ton):30 ton
- Stroke Length (Inches):2 in (50 mm)
- Cylinder Type:Single‑acting hydraulic (hollow)
- Connector Size:3/8 in (CP‑700)
- Weight (lb):27 lb
- Material/Finish:Heavy‑duty metal, lacquer coating
- Additional Feature:Dual shaft thrust/tension
- Additional Feature:Automatic retraction after release
- Additional Feature:Unlimited directionality adjustment
Factors to Consider When Choosing a Hydraulic Cylinder for a Hydraulic Press
When you pick a cylinder, start by matching its capacity rating and stroke length to your press’s force and travel needs. Check that the construction material and seal design will resist wear and prevent leakage under your operating pressure. Finally, guarantee the mounting and alignment options fit your machine’s layout and maintenance routines.
Capacity Capacity Rating
Choosing a hydraulic cylinder whose rated load capacity exceeds the press’s maximum force is essential; you’ll typically see this rating expressed in tons or kilonewtons. First, match the cylinder’s pressure rating—say 10 000 psi—to the system pressure, confirming it can sustain the required load without breaching safety limits. Next, calculate the bore diameter, because capacity grows with the square of the bore area; a larger bore lets you achieve higher force at the same pressure. Apply a safety factor, usually 1.5 to 2 times the static load, to cover dynamic spikes and prevent over‑stress during peak cycles. By confirming these parameters, you guarantee the cylinder will handle the press’s demands reliably and safely.
Stroke Length Compatibility
If the cylinder’s stroke doesn’t exceed the workpiece’s maximum travel, you’ll end up with incomplete forming or insufficient lift. First, compare the required travel to the press’s table range; a 4‑inch stroke fits most shop presses, while larger frames often need 8 inches or more. Add a 10‑20 % safety margin for tool clearance or material deformation, then verify the pump’s flow rate can fill the cylinder quickly enough to meet your cycle time—longer strokes demand higher flow. Remember that longer strokes usually require a larger bore to keep force levels adequate, so balance stroke length with ram diameter. Matching these factors guarantees smooth operation and peak performance.
Cylinder Construction Material
Because the cylinder’s material directly determines strength, durability, and maintenance needs, you should match it to the press’s pressure, cycle count, and environment. High‑carbon steel gives you solid strength and wear resistance, making it a go‑to for most bodies. If your press runs at high pressure or end cycles, consider alloy‑steel such as 4140 or 4340; its higher tensile strength and fatigue resistance keep deformation low. Heat‑treated steel—quenched and tempered—adds hardness and further reduces deflection under load, extending service life. For low‑pressure, vibration‑prone machines, cast iron can dampen noise, but its weight and brittleness limit where you can use it. Finally, apply surface treatments—black‑oxide, lacquer, or corrosion‑resistant paint—to guard against rust and chemicals, especially in harsh industrial settings.
Seal and Leakage Prevention
A well‑designed seal is the linchpin that keeps hydraulic fluid where it belongs, so matching seal material to your press’s fluid type is essential. Choose nitrile for mineral oil, PTFE for synthetic fluids, and verify the seal geometry—V‑ring, U‑seal, or labyrinth—matches the cylinder’s pressure rating; higher pressures demand tighter tolerances and sturdier designs. Keep the piston rod and bore finish at Ra ≤ 0.8 µm to prevent micro‑abrasion that opens leakage paths. Opt for a double‑acting or dual‑seal setup with a pressure‑balanced back‑up ring, ensuring both extension and retraction cycles stay sealed. Finally, monitor oil viscosity and temperature, because excessive heat or low viscosity causes seal shrinkage and seepage, compromising performance.
Mounting and Alignment Options
Seal integrity alone won’t guarantee smooth operation if the cylinder isn’t properly mounted and aligned. First, verify the mounting flange size and bolt‑hole pattern match your press frame or base so the connection can carry the rated load. Align the rod axis with the force direction, keeping it parallel to the worktable to reduce side loads and bearing wear. If your press needs variable strokes or must compensate for frame flexure, choose adjustable or sliding mounts. Guarantee the center‑to‑center distance from the mounting surface accommodates the full stroke without hitting other components. Finally, use alignment guides or precision shims to correct any angular misalignment, preventing uneven pressure distribution and premature seal failure.
Maintenance and Serviceability
When you pick a hydraulic cylinder for your press, its maintenance and serviceability are just as critical as its performance specs. Follow the manufacturer’s oil‑change schedule—typically every 500–1,000 hours—to keep contaminants out and wear low. Inspect seals and O‑rings each shift; replace any cracked, hardened, or extruded parts before leaks develop. Keep the cylinder’s exterior clean and debris‑free so corrosion won’t impair heat dissipation during heavy cycles. Use a calibrated pressure gauge to confirm operation stays within the rated 2,500–10,000 psi range, and act immediately on any deviation. Perform routine visual checks of the rod and piston for scoring or pitting; if surface damage exceeds 0.01 in (0.25 mm), re‑grind or replace the component. This disciplined upkeep maximizes reliability and extends service life.
