You’ve probably noticed that a single bad fitting can turn a smooth hydraulic line into a costly leak. The seven fittings listed here each address a specific weakness—whether it’s dust ingress, pressure spikes, or misalignment—while staying within industry standards and material limits. By matching the right connector to your system’s pressure, temperature, and flow requirements, you’ll avoid downtime and keep performance steady. Let’s explore how each option tackles those challenges.
| 1/2″ Ag Hydraulic Quick Connect Coupler with Dust Caps |  | Professional Grade | Connection Size: 1/2″ NPT / ISO 5675 | Pressure Rating: 4000 PSI (max), 23 000 PSI burst | Material: Hardened steel | VIEW LATEST PRICE | Read Our Analysis |
| 2PCS NPT Flat Face Hydraulic Couplers with Dust Covers |  | Heavy Duty | Connection Size: 1/2″ NPT | Pressure Rating: 5076 PSI | Material: Carbon steel with zinc coating | VIEW LATEST PRICE | Read Our Analysis |
| 3/8″ JIC Reusable Female Hydraulic Fitting (90°) |  | Reusable Fit | Connection Size: 3/8″ Female JIC | Pressure Rating: Not specified (standard hydraulic) | Material: Heavy‑duty steel | VIEW LATEST PRICE | Read Our Analysis |
| 10 Pack Hydraulic Hose Swivel Fittings with Cover |  | Leak‑Lock | Connection Size: 3/8″ NPSM Female x 3/8″ NPTF Male | Pressure Rating: Not specified (standard hydraulic) | Material: Premium carbon steel | VIEW LATEST PRICE | Read Our Analysis |
| AKM 12-Pack 1/2″ Hydraulic Hose Fittings Swivel Crimp Coupling |  | Crimp Ready | Connection Size: 1/2″ JIC 37° | Pressure Rating: Not specified (standard hydraulic) | Material: Corrosion‑resistant coated steel | VIEW LATEST PRICE | Read Our Analysis |
| 4PCS Reusable Hydraulic Hose Repair Fittings Kit (1/2″ 3/8″ 1/4″) |  | Emergency Repair | Connection Size: 1/4″, 1/2″, 3/8″ (mixed) | Pressure Rating: 4000 PSI (rated hose) | Material: Carbon steel, zinc‑plated | VIEW LATEST PRICE | Read Our Analysis |
| 12 Pack Hydraulic Hose Fittings 1/2″ JIC Swivel Ends |  | Budget-Friendly | Connection Size: 1/2″ JIC 37° | Pressure Rating: Not specified (standard hydraulic) | Material: Carbon steel | VIEW LATEST PRICE | Read Our Analysis |
More Details on Our Top Picks
1/2″ Ag Hydraulic Quick Connect Coupler with Dust Caps
The 1/2″ Ag hydraulic quick‑connect coupler with dust caps is the ideal choice for farmers, contractors, and loggers who need a rugged, fast‑acting connection that won’t leak under high pressure. You’ll appreciate its hardened‑steel construction, ISO 5675 body, and 1/2″ NPT threads, which resist corrosion and tolerate up to 4,000 psi. It delivers 12 GPM nominal flow, peaks at 24 GPM, and can burst at 23,000 psi when coupled. The kit includes male and female couplers plus dust caps, keeping contaminants out. Interchangeable across series, it fits agriculture, construction, and logging rigs, and Amazon’s return policy backs your purchase.
- Connection Size:1/2″ NPT / ISO 5675
- Pressure Rating:4000 PSI (max), 23 000 PSI burst
- Material:Hardened steel
- Dust/Cap Inclusion:Dust caps (male & female)
- Swivel/Rotary Design:Poppet pioneer style (non‑swivel)
- Application Scope:Agriculture, construction, logging
- Additional Feature:4000 PSI rating
- Additional Feature:23,000 PSI burst
- Additional Feature:Hardened steel construction
2PCS NPT Flat Face Hydraulic Couplers with Dust Covers
If you need a reliable, leak‑free connection for your Bobcat skid steer or similar equipment, these 1/2″ NPT flat‑face hydraulic couplers with dust covers are the perfect fit. The flat‑face design stops spillage, while the knurled locking sleeve gives you a secure, non‑slip grip and one‑hand operation. Built from carbon steel with a zinc coating, they resist corrosion from –20 °C to 120 °C and handle up to 5,076 PSI and 23 GPM. Two couplers and four dust covers keep contaminants out, meeting ISO 16028 standards and fitting most skid‑steer models, from Bobcat to Kubota.
- Connection Size:1/2″ NPT
- Pressure Rating:5076 PSI
- Material:Carbon steel with zinc coating
- Dust/Cap Inclusion:Dust covers (4 pieces)
- Swivel/Rotary Design:Flat‑face, non‑swivel
- Application Scope:Skid steer, Bobcat, construction equipment
- Additional Feature:Flat‑face spill prevention
- Additional Feature:Knurled non‑slip sleeve
- Additional Feature:One‑hand valve operation
3/8″ JIC Reusable Female Hydraulic Fitting (90°)
Heavy‑duty steel construction makes the 3/8″ JIC reusable female hydraulic fitting (90°) the ideal choice for contractors and equipment owners who need a reliable, crimp‑free connection on tractors, excavators, and off‑road vehicles. You’ll appreciate the 90° swivel design that aligns hoses without twisting, and the 0.065‑inch wall thickness gives strength while staying compact at 3 inches long. It fits 3/8″ R2 and R16 hoses, providing a 37° female JIC port that seals securely without crimping. Use it for hydraulic repairs, hose assemblies, or field service on construction machinery and mobile equipment. The steel body resists wear, and the Amazon 30‑day return guarantee backs your purchase.
- Connection Size:3/8″ Female JIC
- Pressure Rating:Not specified (standard hydraulic)
- Material:Heavy‑duty steel
- Dust/Cap Inclusion:Not included
- Swivel/Rotary Design:90° swivel JIC
- Application Scope:Tractors, construction, mobile equipment, off‑road
- Additional Feature:No crimping required
- Additional Feature:90° swivel connection
- Additional Feature:Heavy‑duty steel

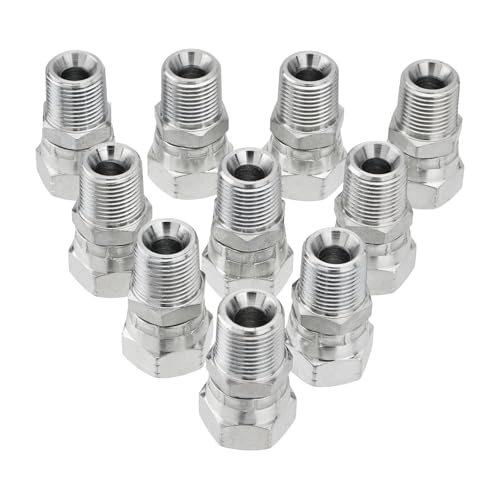

10 Pack Hydraulic Hose Swivel Fittings with Cover
For anyone who needs a reliable, leak‑free connection on hydraulic systems, this 10‑pack of 3/8” NPSM female × 3/8” NPTF male swivel fittings with protective covers is the ideal choice. The NPTF dry‑sealing cone thread and NPSM design lock in fluid, preventing leaks and loosening under pressure. Made from premium carbon steel, the fittings resist high temperature, pressure, and corrosion, keeping your system running smoothly. The machined threads are burr‑free, ensuring a tight seal every time. Use them in industrial equipment or agricultural machinery to control flow and maintain pressure, and enjoy the added protection of the cover that shields the connection from dirt and damage.
- Connection Size:3/8″ NPSM Female x 3/8″ NPTF Male
- Pressure Rating:Not specified (standard hydraulic)
- Material:Premium carbon steel
- Dust/Cap Inclusion:Protection cover (per fitting)
- Swivel/Rotary Design:Swivel end fitting
- Application Scope:Industrial, agricultural machinery
- Additional Feature:NPTF dry‑seal cone
- Additional Feature:Premium carbon steel
- Additional Feature:Burr‑free machined threads

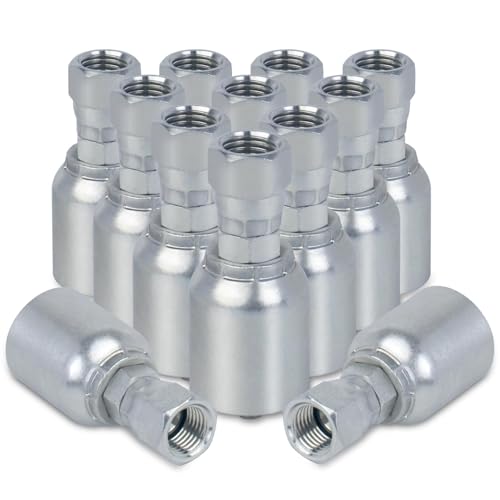

AKM 12-Pack 1/2″ Hydraulic Hose Fittings Swivel Crimp Coupling
The AKM 12‑Pack 1/2″ hydraulic hose fittings deliver a reliable, corrosion‑resistant connection for anyone installing fluid‑power systems, especially when a quick, secure crimp is essential. You’ll appreciate the high‑strength, coated‑steel construction that matches hydraulic hose specifications exactly, ensuring a perfect 1/2″ I.D. crimp. The 1/2″ JIC 37° female end fits Weatherhead, Dayco, or adjustable crimpers without hassle, making it ideal for diverse industrial applications. With a 4.6‑star rating from 49 reviewers, these couplings promise durability and ease of use, backed by a 30‑day return guarantee and manufacturer warranty.
- Connection Size:1/2″ JIC 37°
- Pressure Rating:Not specified (standard hydraulic)
- Material:Corrosion‑resistant coated steel
- Dust/Cap Inclusion:Not included
- Swivel/Rotary Design:Swivel crimp coupling
- Application Scope:Fluid power, industrial hydraulic
- Additional Feature:Crimp‑compatible with 1/2″ hose
- Additional Feature:37° JIC female end
- Additional Feature:Corrosion‑resistant coating
4PCS Reusable Hydraulic Hose Repair Fittings Kit (1/2″ 3/8″ 1/4″)
If you need a quick, reliable fix for a damaged hydraulic hose on construction gear, logging equipment, or tow trucks, the ANCIMOON 4‑piece Reusable Hose Repair Fittings Kit is the perfect solution. This kit includes a 1/4″ fitting, a 1/2″ fitting, and two 3/8″ fittings, each forged from carbon steel and zinc‑plated for rust resistance. They screw onto double‑wire‑braided hoses rated up to 4000 psi, handling 1/4″, 3/8″, and 1/2″ ID sizes (approximately 0.63″, 0.73″, and 0.92″ OD). The 2‑part design lets you replace a section on the spot, buying you time before a permanent hose swap. Ideal for implement hoses, construction rigs, and tow trucks, the kit comes with a 30‑day return guarantee and a warranty for peace of mind.
- Connection Size:1/4″, 1/2″, 3/8″ (mixed)
- Pressure Rating:4000 PSI (rated hose)
- Material:Carbon steel, zinc‑plated
- Dust/Cap Inclusion:Not included
- Swivel/Rotary Design:Non‑swivel (screw‑on)
- Application Scope:Implement hoses, construction, logging, tow trucks
- Additional Feature:Zinc‑plated steel
- Additional Feature:Double‑wire braided hose compatibility
- Additional Feature:Emergency repair kit
12 Pack Hydraulic Hose Fittings 1/2″ JIC Swivel Ends
Industrial technicians who need reliable, leak‑free connections in harsh environments will appreciate the 12‑pack of 1/2″ JIC swivel ends. You’ll find each fitting crafted from carbon steel, delivering strength and corrosion resistance for single‑wire hydraulic lines. The permanent crimp design secures a tight seal, so you won’t waste time chasing leaks. These ends tolerate -65°F to 500°F, making them ideal for outdoor and industrial settings. They match 1/2″ I.D. hoses and connect to 1/2″ JIC 37° ports on pumps, valves, or cylinders, ensuring stable pressure and smooth power transfer. The pack covers petroleum, gasoline, lubricants, and general hydraulic fluids, and Legines backs it with a 30‑day return guarantee.
- Connection Size:1/2″ JIC 37°
- Pressure Rating:Not specified (standard hydraulic)
- Material:Carbon steel
- Dust/Cap Inclusion:Not included
- Swivel/Rotary Design:Swivel JIC end
- Application Scope:Petroleum, industrial hydraulic, mobile systems
- Additional Feature:-65°F to 500°F temperature range
- Additional Feature:Permanent crimp seal
- Additional Feature:Single‑wire hydraulic line design
Factors to Consider When Choosing Hydraulic Hose Fittings
You should match the fitting material to the fluid and guarantee its pressure rating exceeds your system’s maximum. Check that the construction meets industry standards, the seal type suits your application, and the thread type aligns with existing components. Finally, verify the fitting can handle the temperature range you’ll encounter.
Material Compatibility Material Pressure Rating
Choosing hydraulic hose fittings hinges on matching the fitting material to the hose and fluid while ensuring the pressure rating meets or exceeds the system’s maximum working pressure. You must verify that the fitting’s composition—whether steel, stainless steel, or a specialty alloy—pairs with the hose’s material to prevent corrosion, galling, or leaks. High‑strength steel works best for demanding industrial jobs, while stainless steel resists rust in humid or chemical environments. Check the fluid type, too; petroleum‑based oils can degrade certain plastics, whereas synthetic fluids may be compatible with a broader range of metals. Finally, confirm the fitting’s pressure rating is at least the system’s peak pressure, accounting for temperature spikes and transient surges, so the connection stays secure under load.
Material Construction Standards
When you evaluate material construction standards, focus on the base alloy—carbon steel, stainless steel, or aluminum—and the relevant industry specifications such as SAE, ISO, or NPTF. Choose the alloy that matches your system’s pressure, temperature, and corrosion demands; carbon steel offers strength, stainless steel adds rust resistance, and aluminum reduces weight. Verify that the fitting’s threads and sealing surfaces are precision‑machined to meet the chosen standard, guaranteeing leak‑free performance at high pressures. Look for plated or coated finishes that shield against chemical exposure and moisture. Finally, confirm quality certifications like RoHS and REACH compliance, ensuring the product complies with environmental regulations and avoids hazardous substances. These steps keep your hydraulic system reliable and efficient.
Seal Type Selection
Seal type selection determines whether your hydraulic connection stays leak‑free under pressure, temperature swings, and chemical exposure. When you choose a tapered pipe thread seal like NPT or NPTF, you get a dry, metal‑to‑metal joint that tolerates high pressure and resists corrosion. If you need a reusable solution, opt for fittings with O‑ring seals; they’re easy to assemble, disassemble, and maintain a tight seal after many cycles. JIC 37‑degree flare fittings also rely on metal‑to‑metal contact, but the flared end adds extra surface area for a secure lock. For quick connect/disconnect operations, flat‑face couplings use an elastomeric seal to keep fluid spillage to a minimum. Match the seal material to your fluid’s chemistry, the operating temperature range, and the pressure rating to guarantee reliable performance.
Thread Type Compatibility
A hydraulic system’s reliability hinges on matching the exact thread type of each fitting—NPT, NPTF, JIC, SAE, or BSPP—because even identical diameters won’t compensate for differing angles or pitch. You must check the manufacturer’s spec sheet and confirm that the thread form, pitch, and angle align across all connections. When you encounter a JIC fitting where an NPTF is called for, you’ll need an adapter or union; otherwise, leaks, component damage, and safety hazards will follow. Remember that same‑size threads are not interchangeable—JIC and NPTF differ in taper and seal style, so mixing them is a mistake. Use only the thread type the system designer specified, and verify each joint before pressurizing to guarantee a leak‑free, safe hydraulic circuit.
Temperature Resistance Limits
Most hydraulic hose fittings are rated for temperature ranges that can span from –65 °F (–53 °C) up to 500 °F (260 °C), so you’ll need to match those limits to your system’s operating conditions. When you pick a fitting, check the fluid’s maximum temperature and any ambient heat sources; exceeding the rating can cause material degradation, seal failure, and leaks. Consider the application’s duty cycle—continuous high‑heat operation demands a higher‑rated fitting than intermittent use. Fluid type matters too; aggressive chemicals may lower the effective temperature limit. Environmental factors such as sunlight or nearby equipment can raise surface temperature, so factor in a safety margin. Selecting a fitting with an appropriate temperature rating protects performance and extends system life.
Installation Ease Features
When you prioritize installation ease, look for hydraulic fittings that combine swivel ends, knurled sleeves, and one‑handed quick‑connect mechanisms. Swivel ends let you orient the hose without twisting, preventing kinks and saving time. Knurled sleeves give you a firm, non‑slip grip, so you can tighten or loosen connections confidently, even in oily conditions. One‑handed quick‑connects let you attach or detach hoses with a single motion, cutting down on labor and reducing the chance of errors. Choose reusable fittings that skip crimping; they’re ready for field repairs and keep your workflow moving. Flat‑face designs further protect you from spills when you connect or disconnect, keeping the work area clean and safe. These features together streamline installation and keep your hydraulic system running smoothly.
