First, check your engine’s RPM—wrap an inductive tachometer around the spark plug wire and aim for about 3,600 RPM; if it’s low, tighten the throttle linkage and governor. Warm the hydraulic fluid to roughly 130 °F, bleed any air, and make sure the level is right. Hook up a calibrated pressure gauge and flow meter, run the pump unloaded, and record PSI at ports A and B and the steady GPM. Adjust the unloader valve until the pressure stays within a few hundred PSI of your target, then listen for odd noises or leaks that signal wear. The good news is that once you’ve got those numbers, you can tell if the pump’s healthy, and the next steps will show you how to fine‑tune it for peak performance.
Verify Engine RPM Before Log Splitter Pump Test
If you fire up your log splitter and skip checking the engine RPM, you’re basically guessing whether the pump will ever hit its sweet spot. First, wrap an inductive tachometer 4‑5 times around the spark plug wire, then start the engine and watch the display. Aim for the 3600 RPM range; that’s where engine torque translates into peak hydraulic pressure. If the reading’s low, inspect the throttle linkage—make sure it isn’t binding or out of adjustment. Tighten the governor after you’ve dialed the throttle, then re‑check the RPM. A quick, no‑load check before you load the pump saves you from misdiagnosing a pump problem that’s really just an RPM issue. This simple step keeps your splitter humming efficiently. Verify the engine temperature stays around 90 °F to ensure accurate RPM readings. The hydraulic ram’s pulsating surge converts water flow into the mechanical power needed for the chipper.
📟Inductive Design – This inductive tachometer measures engine speed when placed near the spark plug wires. It automatically switches to sleep mode when not in use and wakes up when needed.
Effortless Operation: Instantly reset total hours and maintenance time with a long press of the "RST" button. Toggle between "Hours" and "Service" modes using the intuitive "MODE" button for versatile functionality
Applications ---- This hour meter output is set to 2-stroke.Use for 2-stroke 1-cylinder,4-stroke 2-cylinder of gasoline engine equipment, such as lawnmowers, ATVs, motorcycles, boats, and cross-country skis; or a small percentage of four-stroke 1-cylinder equipment (small parts, such as OHV engines).
Warm Hydraulic Fluid to 130°F for Accurate Testing
After you’ve confirmed the engine is hitting that sweet 3,600 RPM spot, the next step is getting the hydraulic fluid up to the right temperature. Warm the fluid to 130 °F with a portable heater or by running the pump under no load for a few minutes—this is your fluid preheat. Use an infrared thermometer on the reservoir to do temperature verification; you should see a steady reading between 130 °F and 140 °F. If it’s cooler, keep heating; if it’s hotter, let it cool a bit. Proper viscosity at 130 °F prevents cavitation, gives accurate pressure readings, and protects the pump from premature wear. The good news is once you hit that sweet spot, your test results will be reliable and repeatable. Monitoring for discoloration can also indicate fluid degradation before testing. Remember that flammable hydraulic fluid requires proper ventilation and fire‑resistant storage to minimize fire risks. Maintaining fluid temperature within the recommended range helps avoid overheating, which can lead to hydraulic fluid breakdown and reduced system efficiency.
Check Fluid Levels & Bleed Air From the System
Before you start cranking the pump, make sure the fluid level is spot‑on and any trapped air is out of the system. First, set the cylinders in the proper positioning: collapse them fully, lower the arms, and keep the lift arms retracted so the reservoir shows a true reading. Park the unit on level ground, then insert a clean dipstick or gauge to check the fluid depth. You want the level within half an inch to an inch of the top mark and at the “maxi” indicator after a brief engine run. If the level is low, top it off with the recommended hydraulic fluid, then reseat the dipstick. Next, bleed air by cycling the pump to the high position, watching for bubbles, and repeat until the fluid runs clear. Finally, verify gauge calibration before you move on. Confirm cylinders are free of debris before measurement. Always wear appropriate personal protective equipment when handling hydraulic fluid. Hydraulic fluid should be stored in a clean, sealed container to prevent contamination. Use a clean dipstick to avoid introducing particles into the system.
Flow Rate: Delivers up to 16 GPM for efficient log splitting performance.
Perfect replacement pump for log splitter coupling controlled hydraulic systems, designed for horizontal mounting,capable of quick oil output.
Set Up Flow Meter and Pressure Gauge for Pump Test

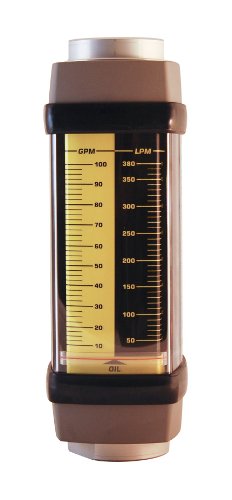

You’ve just made sure the fluid level is perfect and all the air is out, so now it’s time to hook up the flow meter and pressure gauge and actually see how the pump is performing. First, locate the high‑pressure port on the pump housing or manifold and attach the gauge with its 24‑30‑inch hose, making sure the connection is tight and leak‑free. If you haven’t done gauge recently, run a quick gauge calibration against a known reference to confirm accuracy. Next, position the flowmeter in the line downstream of the pump, using the quick‑disconnect couplers. Provide straight pipe—about ten diameters upstream and five downstream—to minimize turbulence. Double‑check all hoses are secured before you start the engine. Remember to check for leaks after each connection is tightened. Also, be sure to purge trapped air by cycling the cylinder a few times before taking measurements. Follow the bleed‑valve sequence to fully remove any remaining air pockets.
Test Flow, Pressure and Temperature in same time
Twist-close nozzle prevents leaking; multiple extensions available including rigid, flexible and gear lube
Twist-close nozzle prevents leaking; multiple extensions available including rigid, flexible and gear lube
Measure Pump Flow Rate (GPM) With Wedge Retracted
So, how do you actually get a reliable GPM reading with the wedge pulled back? First, retract the wedge so the pump runs free of the cylinder load. Then, do a quick pump squeeze calibration to confirm the pump’s displacement matches the manual’s spec. Choose a flowmeter that fits your system—positive‑displacement meters give the most accurate real‑time data, while turbine or electromagnetic units work fine if you’re on a budget. Install the meter downstream of the relief valve, set the valve’s spring tension to zero, and watch the needle climb as pressure rises. Record the steady‑state flow; this is your actual GPM. Compare it to the theoretical value from the RPM‑displacement formula to spot wear or inefficiency. Ensure the pump’s displacement is constant during the test. Proper viscosity selection helps maintain consistent flow across temperature variations. Using the correct ISO VG fluid grade can prevent excessive wear and keep performance stable. Understanding water hammer dynamics is essential for minimizing pressure spikes during testing.
Interpret GPM Results for Your Splitter Model
Now that you’ve got a solid GPM reading with the wedge retracted, the next step is to make sense of that number for the splitter you own or are eyeing. First, match your reading to the valve sizing the manufacturer lists. A 13‑ton, 3‑point splitter tops out at about 3 GPM, so anything lower means the pump’s under‑powered or you have a restriction. For a 20‑ton unit, aim for 11 GPM; exceeding that can stress the valve and cause premature wear. Heavy‑duty 35‑ton splitters expect 18‑30 GPM, and a pump that hits that range signals good flow optimization. If your measured GPM falls short of the valve’s rating, check for clogged filters or undersized hoses—those are the usual culprits that throttle flow. Adjusting pipe diameter or swapping a larger valve can bring the system back into balance, giving you the speed and efficiency you expect. The force calculation is based on piston area, not rod area, to determine true tonnage. Selecting the right rod seal material can further protect the system from wear and leakage. Using a multi‑purpose additive can improve compatibility across both transmission and hydraulic components. Proper fluid viscosity selection helps maintain consistent pressure and reduces heat buildup.
Run Pressure Test and Record PSI A & PSI B Values
Before you start cranking the engine, make sure you’ve got a clean, leak‑free connection to each pump port, because the pressure test only tells what what the pump can really push when the flow is dead‑headed. First, verify pump gauge calibration—your gauge should read accurately up to at least 10,000 PSI. Attach it to port A, deadhead the line, then fire up the engine. Let the pressure stabilize and record PSI A, aiming for 1,000‑1,150 PSI at operating temperature. After a ten‑minute hold, switch the gauge to port B, repeat the deadhead test, and note PSI B. Log both values with temperature and RPM; a 5 % differential means the pump is healthy, while larger gaps signal a problem. Finally, double‑check valve calibration before you move on. Use the 3/8‑inch ISO 7241B connector when attaching the gauge to ensure a proper fit. Properly selected high‑pressure hose material is essential to safely transmit the fluid under these test conditions. Wear appropriate protective gloves to prevent skin contact with hydraulic fluid. directional control valves help manage flow direction during testing.
Adjust Unloader Valve to Reach Target Pressure
When you’re ready to fine‑tune the pressure on your wood‑chipper or log‑splitter, the unloader valve is the key you’ll be turning. First, power down, bleed the system, and mount a calibrated gauge near the pump. Loosen the jam nut, then make tiny 1/8‑turn adjustments clockwise to raise the relief pressure, or counter‑clockwise to drop it. After each tweak, cycle the trigger three times and watch the gauge settle; this incremental approach is the heart of unloader calibration. Aim for the stable reading you noted during pressure targeting—say 3800 PSI on a 4000‑PSI machine—while keeping the spike under 300–400 PSI. Once you hit the target, tighten the locknut, restart, and verify the pressure holds under load. Gauge placement should be at the pump head for the most accurate pressure reading. Proper hydraulic fluid viscosity ensures consistent pressure transmission during these adjustments. Always inspect the reservoir for air bubbles before beginning the calibration process.
Diagnose Common Pump Failures During Testing
After you’ve got the unloader valve dialed in, the next thing to watch is whether the pump itself is actually delivering the pressure you set. First, listen for a steady hum; a rattling or whining tone often means air is trapped in the lines, so bleed the system and watch the pressure gauge climb. If the gauge stalls low, check for oil leaks around hoses, fittings, and the pump seal—any drop in fluid level will sap pressure. Next, observe valve timing as you cycle the pressure plate; sluggish or delayed response points to a worn pump or a mis‑timed valve. Finally, feel the pump housing for excess heat; overheating signals internal wear or a failing seal that needs replacement before you move on. Also, inspect the coupler teeth for wear, as damaged couplers can prevent proper pressure transmission.
Final Safety & Performance Checklist Before Use
A solid safety and performance checklist is the last thing you want to skip before firing up your wood‑chipper or log‑splitter, because a missed step can turn a smooth cut into a costly repair. Start by confirming that all safety protocols are in place: guards, shields, and chains must be secure, emergency shut‑off and reverse bar tested, and battery lockout tags applied. Verify fluid levels, color, and leak‑free hoses, then inspect breather caps and filters for contamination. Check temperature and pressure against performance metrics, watching for hot spots or excessive pressure. Finally, clear debris, tighten bolts, and make sure grease points are serviced. If everything checks out, you’re ready to run the pump safely and efficiently.
